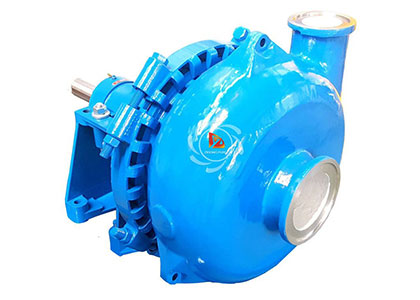

6x4D Sand Pump Mainly Features:
Inlet and discharge diameter in 6″ and 4″.
Robust design with high chrome material and thicker volute casing to ensure longer lifetime.
Wider flow channel and 3 vane impeller to ensure Non-clogging for large particle size.
Zidong ZG durable design coarse sand suction pumps are designed for continuously handling the most difficult higher abrasive slurry
which contain too big solids to be pumps by a common slurry pump.
The pump body(casing & impeller) made of 27% high chrome alloy, the ultra thick pump case let the pump anti-wear and need lowest maintenance cost.
●Single-casing and horizontal with outlet direction can be positioned 360°, easy to install.
●Shaft Components adopt cylinder structure, which is convenient to adjust the gap between impeller and front wearing plate. The shaft uses grease lubrication.
●Shaft Seal: expeller drive seal, packing seal, and Mechanical seal.
●Broad Flow Passage & Good Anti-Cavitation Property & Highly Efficient Wear Resistance.
●Driving Method: V Belt Drive, Elastic Shaft Coupling Transmission, Gear Box Drive, Fluid Coupling Transmission, Variable Frequency Drive Device and Thyristor Speed Control.
●The wet parts are made of Ni-hard and high-chrome wear-resistant alloys with good anti-corrosive property.
●Variable speeds and modals to ensure smooth operation. Additionally, Long service life and high operation efficiency offer reliable performance in a tough operating environment.
●Sand and gravel
●Sand barge loading
●River channel dredging
●Stone material processing factory
●Transferring power plant ash
●Delivering furnace clinker in iron works
●Mill discharge
●Suction hopper dredging
