8x6E Sand Pump Mainly Features:
Inlet and discharge diameter in 8″ and 6″.
Wide flow & head range fit for individual demand.
Thicker wall design with hard metal let the pump lasts longer than normal.

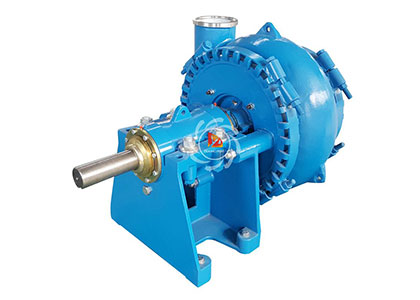

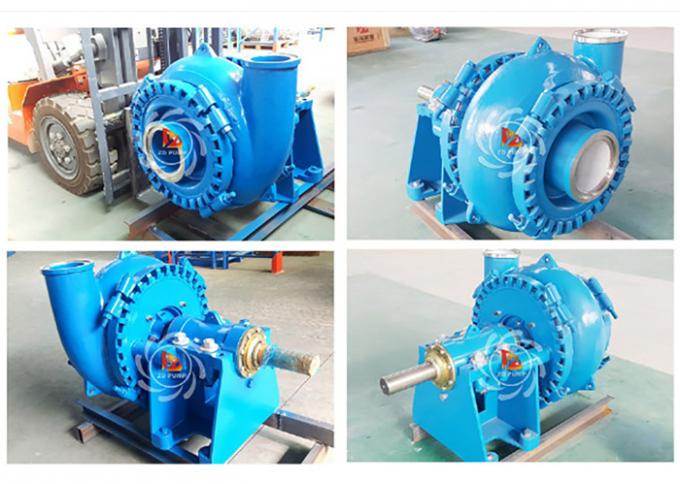

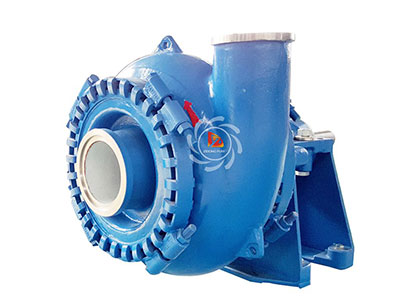

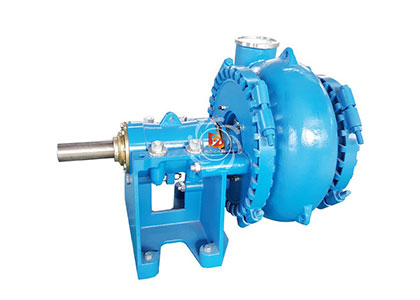

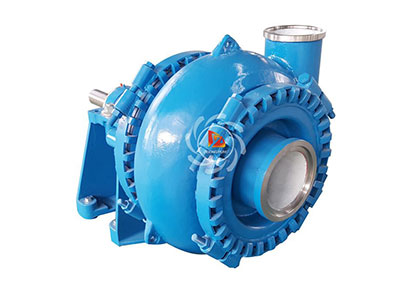

ZG(H) Series Sand Gravel Pump is horizontal single-casing gravel pump with wide channel to transfer sand, slurries or gravels with big particle size. The wet parts are made of Ni-hard and high-Chrome alloys resistance material to ensure long service life. It has superior performance than common pumps in dredging, sand mining, barge loading and mineral processing etc.
●Single-casing and horizontal with outlet direction can be positioned 360°, easy to install.
●Shaft Components adopt cylinder structure, which is convenient to adjust the gap between impeller and front wearing plate. The shaft uses grease lubrication.
●Shaft Seal: expeller drive seal, packing seal, and Mechanical seal.
●Broad Flow Passage & Good Anti-Cavitation Property & Highly Efficient Wear Resistance.
●Driving Method: V Belt Drive, Elastic Shaft Coupling Transmission, Gear Box Drive, Fluid Coupling Transmission, Variable Frequency Drive Device and Thyristor Speed Control.
●The wet parts are made of Ni-hard and high-chrome wear-resistant alloys with good anti-corrosive property.
●Variable speeds and modals to ensure smooth operation. Additionally, Long service life and high operation efficiency offer reliable performance in a tough operating environment.
●Sand and gravel
●Sand barge loading
●River channel dredging
●Stone material processing factory
●Transferring power plant ash
●Delivering furnace clinker in iron works
●Mill discharge
●Suction hopper dredging
