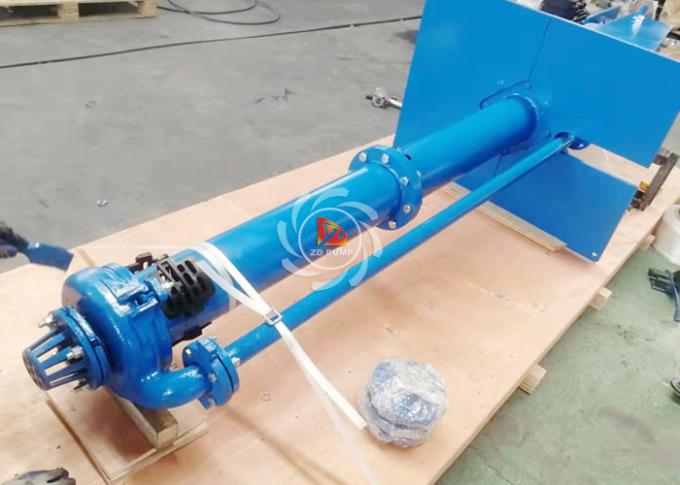

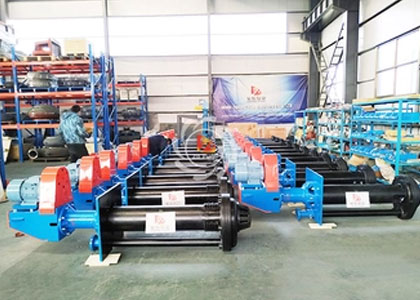

Type ZP metal liner sump slurry pumps are vertical, centrifugal type, submerged in sump to work.
They are mainly applicable to transport abrasive, coarse particle, high concentration slurry.
Open type impellers dsign is no clogging.

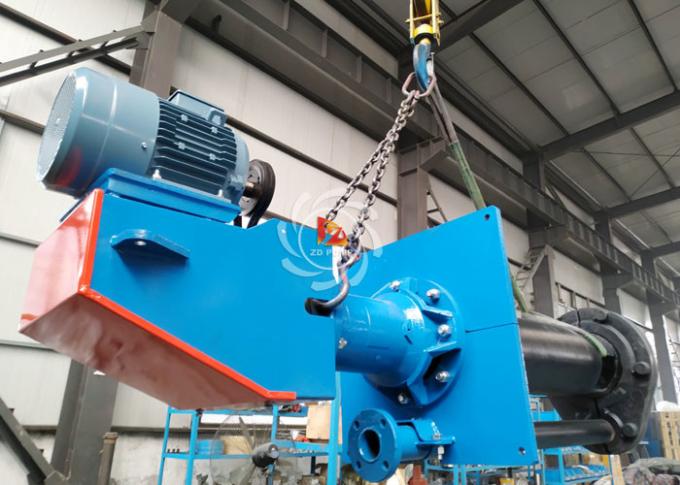

ZIDONG ZP/ZPR heavy duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty cantilever design makes the ZIDONG ZP/ZPR sump pump ideally suited for heavy continuous handling of abrasive and corrosive liquids and slurries whilst submerged in sumps or pits.
• Wetted components are available in A05 high chrome alloys and elastomers (rubber);
• Anti-wear, anti-corrosion, which let the pumps service more longer;
• No need the lower submerged bearings, so no submerged bearing failures;
• The vertical cantilever design requires no shaft seal;
• No priming required;
• The screened inlets and large impeller passages reduce the risk of blockages;
• Interchangeable wearing parts with the majority of other slurry pump brands.
| ZP/ ZPR Clear Water Performance | ||||||||
| Model | Max. Power(kw) |
Material | Q Capacity | Head H(m) |
Speed N(r/min) |
Max. Eff η% |
||
| Liner | Impel | (m3/h) | (I/S) | |||||
| ZP-40PV | 15 | M | M or RU | 19.44~43.2 | 5.4~12 | 4.5~28.5 | 1000~2200 | 40 |
| ZPR-40PV | 15 | RU | RU | 17.28~39.6 | 4.8~11 | 4~26 | 1000~2200 | 40 |
| ZP-65QV | 30 | M | RU | 23.4~111 | 6.5~30.8 | 5~29.5 | 700~1500 | 50 |
| ZP-65QV | 30 | M | M | 19.8~93.06 | 5.5~25.85 | 5~29.5 | 700~1500 | 40 |
| ZP-65QV | 30 | M | M | 23.4~87.12 | 6.75~24.2 | 5.5~31.5 | 700~1500 | 58 |
| ZPR-65QV | 30 | RU | RU | 22.5~105 | 6.25~29.15 | 5.5~31.5 | 700~1500 | 51 |
| ZP-65QV | 30 | M | M | 18.9~89.1 | 5.25~24.75 | 5~28 | 700~1500 | 35 |
| ZP-100RV | 75 | M | RU | 56.7~221.76 | 15.75~61.9 | 4.5~34.5 | 500~1200 | 56 |
| ZP-100RV | 75 | RU | RU | 64.8~285 | 18~79.2 | 7.5~36 | 600~1200 | 62 |
| ZPR100RV | 75 | M | M | 54~289 | 15~80.3 | 5~35 | 500~1200 | 56 |
| ZP-100RV | 75 | M | M | 54~237.6 | 15~66 | 6~30 | 600~1200 | 40 |
| ZP-150SV | 110 | M | RU | 108~479.16 | 30~133.1 | 8.5~40 | 500~1000 | 52 |
| ZP-200SV | 110 | M | M or RU | 189~891 | 52.5~247.5 | 6.5~37 | 400~850 | 64 |
| ZP-250TV | 200 | M | M or RU | 261~1089 | 72.5~302.5 | 7.5~33.5 | 400~750 | 60 |
| ZP-300TV | 200 | M | RU | 288~1267 | 80~352 | 6.5~33 | 350~700 | 50 |
• Minerals processing
• Coal preparation
• Chemical processing
• Effluent handling
• Sand and gravel
• Abrasive and/or corrosive slurries
• Large particle sizes
• High density slurries
• Heavy duties demanding cantilever shafts
