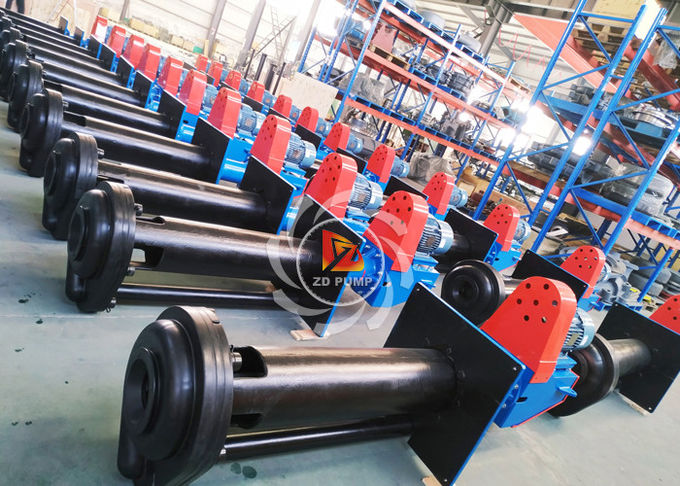

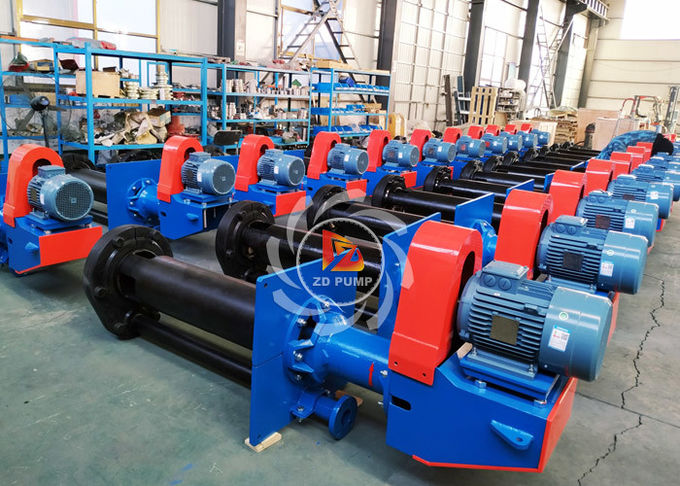

Type ZPR rubber liner sump slurry pumps are vertical, centrifugal type, submerged in sump to work.
They are mainly applicable to transport abrasive, coarse particle, high concentration slurry.
Open type impellers dsign is no clogging.
ZIDONG ZPR vertical rubber slurry pumps are designed to transport slurries in the sump. It mainly used for handling high concentration, high corrosive slurries without shape edge and lighter in weight. ZPR series pumps have no need of any shaft seal and sealing water, They can also be operated normally for insufficient suction duties.The length of shaft can be customized according different work conditions, Besides, Optional recessed impeller and suction agitator are also available.

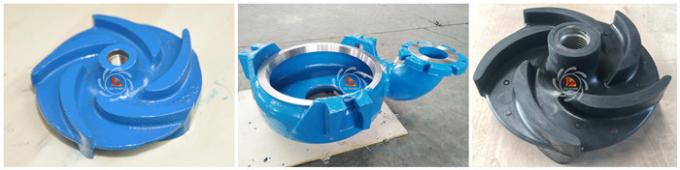

●Wetted components are available in A05 high chrome alloys and elastomers (rubber);
●Anti-wear, anti-corrosion, which let the pumps service more longer;
●No need the lower submerged bearings, so no submerged bearing failures;
●The vertical cantilever design requires no shaft seal;
●No priming required;

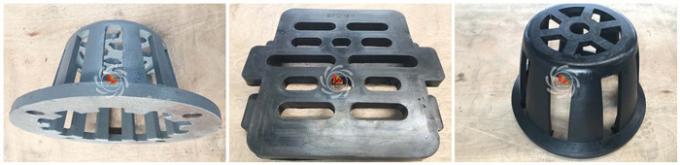

●The screened inlets and large impeller passages reduce the risk of blockages
●Interchangeable wearing parts with the majority of other slurry pump brands
| ZP/ ZPR CLEAR WATER PERFORMANCE | ||||||||
| MODEL | MAX. POWER (KW) |
MATERIAL | Q CAPACITY | HEAD H(m) |
SPEED n(r/min) |
MAX. Eff η% |
||
| LINER | IMPEL | (m 3 /h) | (I/S) | |||||
| ZP-40PV | 15 | M | M or RU | 19.44~43.2 | 5.4~12 | 4.5~28.5 | 1000~2200 | 40 |
| ZPR-40PV | 15 | RU | RU | 17.28~39.6 | 4.8~11 | 4~26 | 1000~2200 | 40 |
| ZP-65QV | 30 | M | RU | 23.4~111 | 6.5~30.8 | 5~29.5 | 700~1500 | 50 |
| ZP-65QV | 30 | M | M | 19.8~93.06 | 5.5~25.85 | 5~29.5 | 700~1500 | 40 |
| ZP-65QV | 30 | M | M | 23.4~87.12 | 6.75~24.2 | 5.5~31.5 | 700~1500 | 58 |
| ZPR-65QV | 30 | RU | RU | 22.5~105 | 6.25~29.15 | 5.5~31.5 | 700~1500 | 51 |
| ZP-65QV | 30 | M | M | 18.9~89.1 | 5.25~24.75 | 5~28 | 700~1500 | 35 |
| ZP-100RV | 75 | M | RU | 56.7~221.76 | 15.75~61.9 | 4.5~34.5 | 500~1200 | 56 |
| ZP-100RV | 75 | RU | RU | 64.8~285 | 18~79.2 | 7.5~36 | 600~1200 | 62 |
| ZPR100RV | 75 | M | M | 54~289 | 15~80.3 | 5~35 | 500~1200 | 56 |
| ZP-100RV | 75 | M | M | 54~237.6 | 15~66 | 6~30 | 600~1200 | 40 |
| ZP-150SV | 110 | M | RU | 108~479.16 | 30~133.1 | 8.5~40 | 500~1000 | 52 |
| ZP-200SV | 110 | M | M or RU | 189~891 | 52.5~247.5 | 6.5~37 | 400~850 | 64 |
| ZP-250TV | 200 | M | M or RU | 261~1089 | 72.5~302.5 | 7.5~33.5 | 400~750 | 60 |
| ZP-300TV | 200 | M | RU | 288~1267 | 80~352 | 6.5~33 | 350~700 | 50 |
The rugged ZIDONG ZP/ZPR vertical rubber slurry pumps are available in a wide range of popular sizes to suit most pumping applications. These pumps are proving their reliability and efficiency worldwide in:
● Minerals processing
● Coal preparation
● Chemical processing
● Effluent handling
● Sand and gravel
● Abrasive and/or corrosive slurries
● Large particle sizes
● High density slurries
● Heavy duties demanding cantilever shafts
And almost every other tank, pit or hole-in-the-ground slurry handling situation.
