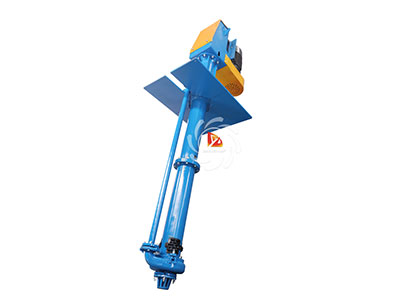

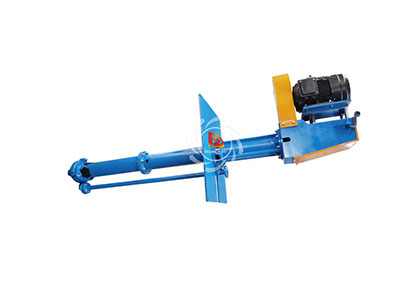

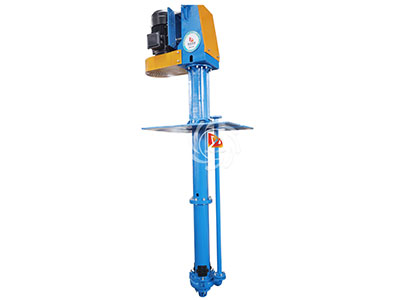

40PV-ZP Vertical Slurry Pump is ideal for a variety of submerged suction pumping applications. The vertical slurry pumps operate well in a variety of sump conditions, and can also be readily applied on floating dewatering or other floating pump platforms. As a true cantilevered vertical slurry pump, the ZP Series does not have submerged bearings or seals, thus, eliminating the primary failure mechanism for similarly fielded pump lines.
40PV-ZP Vertical pumps not only provide excellent wear life properties, they also operate efficiently to further reduce operating costs. These vertical slurry pumps can be fully elastomer lined or hard metal fitted. There are no submerged bearings or packing with a unique high capacity double suction design. Optional recessed impeller and suction agitator are available.
| Model |
Matching power P(kw) |
Capacity Q(m3/h) |
Head H(m) |
Speed n(r/min) |
Eff.η(%) |
Impeller dia.(mm) |
Max.particles(mm) |
Weight(kg) |
| 40PV-ZP(R) | 1.1-15 | 17.2-43.2 | 4-28.5 | 1000-2200 | 40 | 188 | 12 | 300 |
Wet parts of type ZP pump are made of abrasion-resistant metal.
All parts of type ZPR pump immersed in liquid are lined with rubber outer liner. They are suited to transport no-edge angle abrasive slurry.
CANTILEVERED SHAFT
The standard ZP(R) pumps feature a cantilevered shaft which is up to 2400mm long. The cantilevered shaft means that there is no shaft sealing requirement and the drive end bearings do not come into contact with any pumped product. This reduces the risk of bearing failure and extends the wear life of the pumps.
HEAVY DUTY WET END
Wet end components are manufactured from high quality 27% chrome white iron or rubber coated steel for exceptional wear resistance and service life with minimal corrosion. The heavy duty design can pump high density and abraisive slurries and the large passages of the impeller allows the transfer of large particles without blockages in a wide range of mining, processing and heavy industrial applications. Wet end stub shaft options are available to suit severe duty applications.
COLUMN AND DISCHARGE PIPES
Column and discharge pipes are available in a range of materials to suit the requirements of operators. Standard options include mild steel and rubber lined mild steel. Composite options are available.
VERSATILE DRIVE OPTIONS
ZP(R) pumps can be directly driven using electric motors or belt driven with either set speed or variable speed operation.
REMOVABLE STRAINERS
ZP(R) pumps feature rubber or cast iron upper strainers and cast iron lower strainers to prevent blockages. The strainers are easily removed for servicing or replacement.
“L” MODELS EXTENDED SHAFT
The extended shaft “L” model features column bearings and shaft seal which further extends the pumping depth and enables the transfer of slurries from deeper sumps and pits.
| ZP/ ZPR CLEAR WATER PERFORMANCE | ||||||||
| MODEL | MAX. POWER (KW) |
MATERIAL | Q CAPACITY | HEAD H(m) |
SPEED n(r/min) |
MAX. Eff η% |
||
| LINER | IMPEL | (m 3 /h) | (I/S) | |||||
| ZP-40PV | 15 | M | M or RU | 19.44~43.2 | 5.4~12 | 4.5~28.5 | 1000~2200 | 40 |
| ZPR-40PV | 15 | RU | RU | 17.28~39.6 | 4.8~11 | 4~26 | 1000~2200 | 40 |
| ZP-65QV | 30 | M | RU | 23.4~111 | 6.5~30.8 | 5~29.5 | 700~1500 | 50 |
| ZP-65QV | 30 | M | M | 19.8~93.06 | 5.5~25.85 | 5~29.5 | 700~1500 | 40 |
| ZP-65QV | 30 | M | M | 23.4~87.12 | 6.75~24.2 | 5.5~31.5 | 700~1500 | 58 |
| ZPR-65QV | 30 | RU | RU | 22.5~105 | 6.25~29.15 | 5.5~31.5 | 700~1500 | 51 |
| ZP-65QV | 30 | M | M | 18.9~89.1 | 5.25~24.75 | 5~28 | 700~1500 | 35 |
| ZP-100RV | 75 | M | RU | 56.7~221.76 | 15.75~61.9 | 4.5~34.5 | 500~1200 | 56 |
| ZP-100RV | 75 | RU | RU | 64.8~285 | 18~79.2 | 7.5~36 | 600~1200 | 62 |
| ZPR100RV | 75 | M | M | 54~289 | 15~80.3 | 5~35 | 500~1200 | 56 |
| ZP-100RV | 75 | M | M | 54~237.6 | 15~66 | 6~30 | 600~1200 | 40 |
| ZP-150SV | 110 | M | RU | 108~479.16 | 30~133.1 | 8.5~40 | 500~1000 | 52 |
| ZP-200SV | 110 | M | M or RU | 189~891 | 52.5~247.5 | 6.5~37 | 400~850 | 64 |
| ZP-250TV | 200 | M | M or RU | 261~1089 | 72.5~302.5 | 7.5~33.5 | 400~750 | 60 |
| ZP-300TV | 200 | M | RU | 288~1267 | 80~352 | 6.5~33 | 350~700 | 50 |

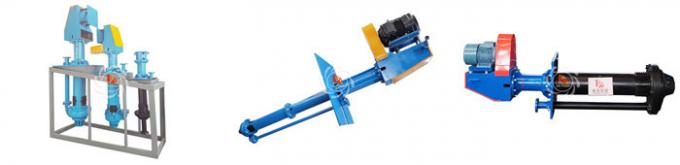

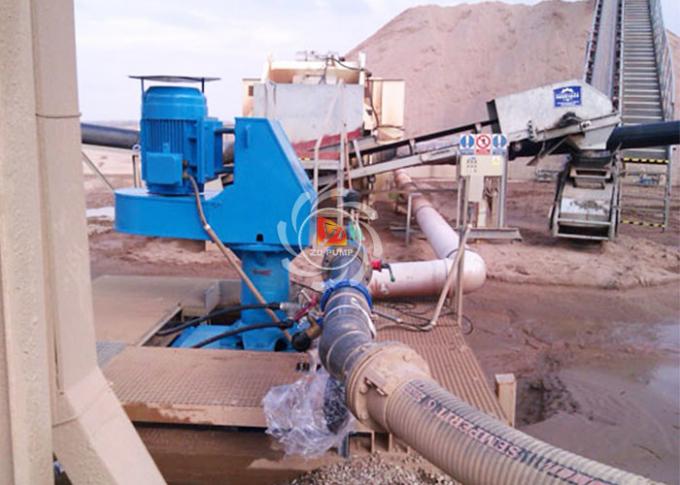

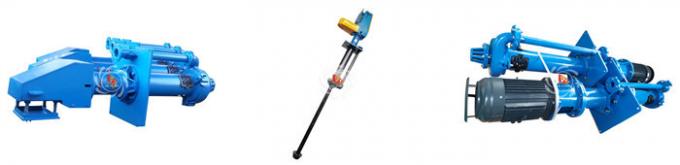

The rugged ZIDONG ZP/ZPR vertical slurry pumps are available in a wide range of popular sizes to suit most pumping applications. These pumps are proving their reliability and efficiency worldwide in:
● Minerals processing
● Coal preparation
● Chemical processing
● Effluent handling
● Sand and gravel
● Abrasive and/or corrosive slurries
● Large particle sizes
● High density slurries
● Heavy duties demanding cantilever shafts
And almost every other tank, pit or hole-in-the-ground slurry handling situatio
