ZG series 14x12G hot models

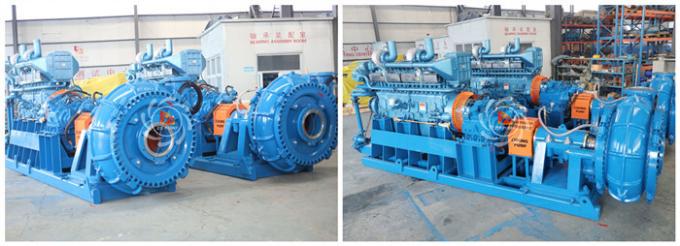

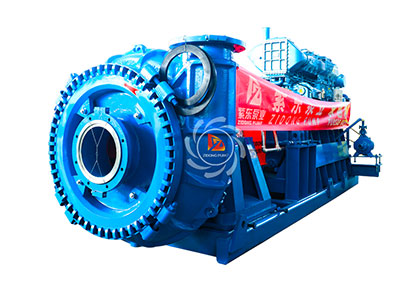

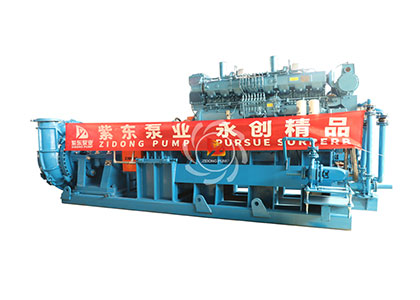

Pump with gear and diesel in completely set
Buy today then use for tomorrow!

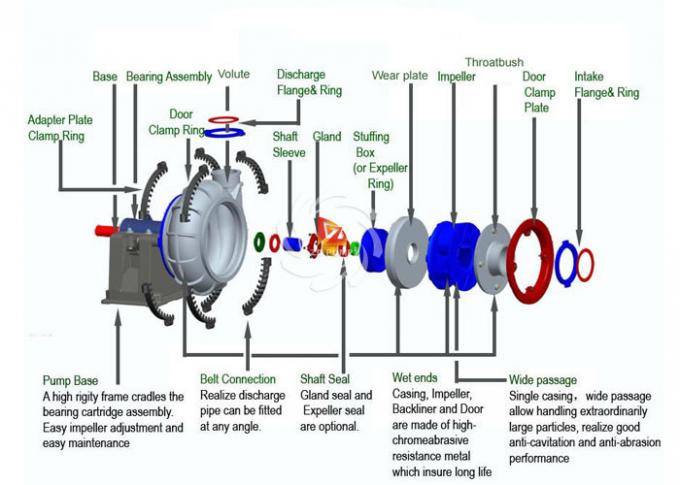

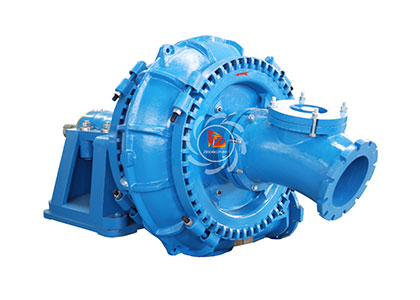

●Centrifugal horizontal extra thick single-casing.
●The outlet direction can be positioned 360°, easy to install.
●Shaft Components adopt cylinder structure, which is convenient to adjust the gap between impeller and front wearing plate.
●Grease lubrication for shaft.
●Shaft Seal: expeller drive seal, packing seal, and Mechanical seal.
●3 Vanses big flow passing channel impeller
●Driving Method: V Belt Drive, Elastic Shaft Coupling Transmission, Gear Box Drive, Fluid Coupling Transmission, Variable Frequency Drive Device and Thyristor Speed Control.

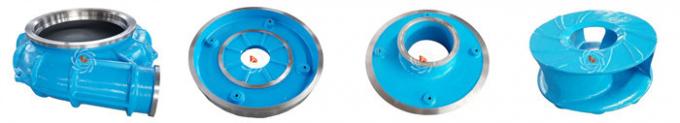

●The wet parts are made of Ni-hard and high-chrome wear-resistant alloys with good anti-corrosive property.
●Variable speeds and modals to ensure smooth operation. Additionally, Long service life and high operation efficiency offer reliable performance in a tough operating environment.
The pump body(casing & impeller) made of 27% high chrome alloy, the extra thick pump case let the pump anti-wear and need lowest maintenance cost.
●Dredging, mud and sand clearing, sand extraction, sand suction and so on of the port, watercourse, lake and so on;
●Mud and sand, gravel extraction, land reclamation project;
●Slag discharge of the iron mine, tailing pond, ore dressing plant and other mines, slurry discharge and all solution containing solid substance;
●Absorption of the high-concentration tailing slag, waste residue, high-temperature iron slag and iron chip in metallurgy, steel and other industries;
●Sand extraction, gold washing and so on
●It can be applicable for work in the shallow water zone and swamp, and can be used for watercourse dredging, lake development, wetland park construction, development along the beach, salt lake development, tailing control and other water conservancy project and swamp development project.
