| Material | Cr28 High Wear Resistance Iron | Hardness | 62HRC+ |
|---|---|---|---|
| Color | Customized | Painting | Spay-baking Technique |
Parts in contacting with the slurry are made of high chrome alloy(made of Cr 26-28%, with hardness HRC60+) wear resistance metal. They are replaceable and selectable according to real site condition.
Overview
High chrome alloy is a wear resistance white iron that offers excellent performance under very erosive conditions. This alloy can be efficiently used in a wide range of slurry types. The high wear resistance of alloy KmTBCr27 is provided by the presence of hard carbides within its micro structure. Alloy KmTBCr27 material is particular suited to applications where mild corrosion resistance, as well as erosion resistance is required, especially still in a longer life.
Wet Parts List

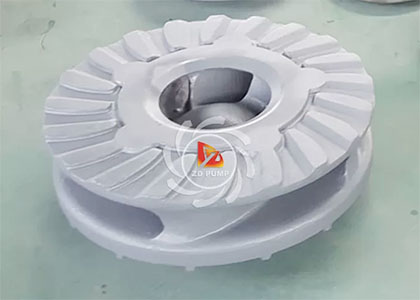

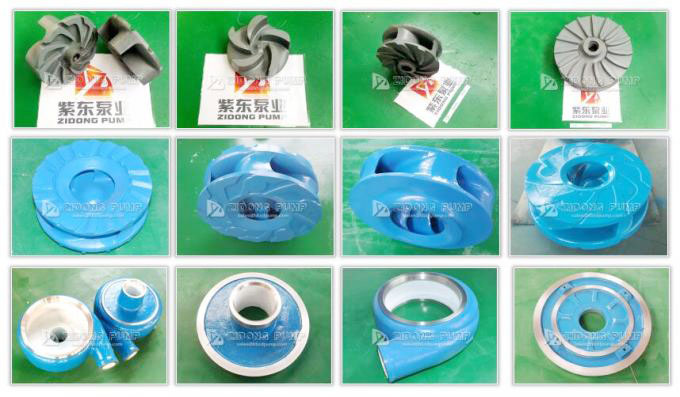

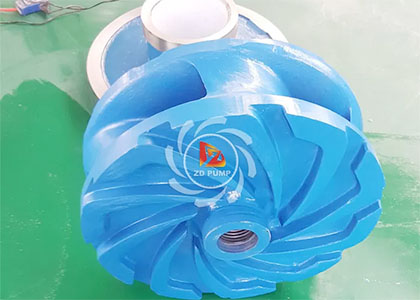

| Impeller | Volute Liner | Throatbush |
| Frame plate liner insert | Expeller | Expeller seal |
Physical Properties
| Density(kg/m3) | Hardness(HBW10/3000) | Tensile Strength(MPa) |
Mechanism Performance Ak(J/cm2) |
Young Modulus(Gpa) | Elongation At Break(%) |
Toughness(J) |
| 7500 | 650 | 780 | 6-10 | 220 | 0.4 | 190 |

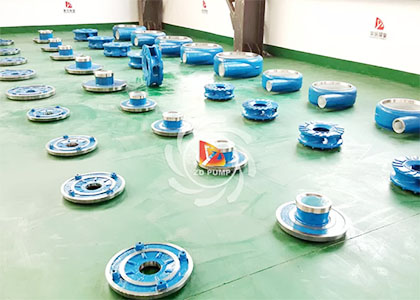

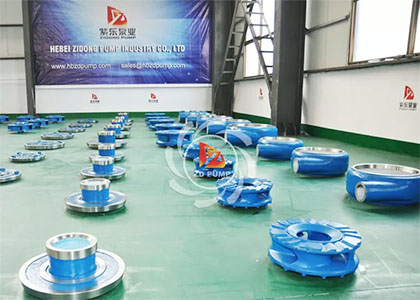

Stocked Parts For Fast Delivery
