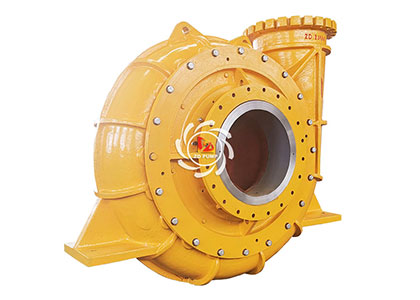

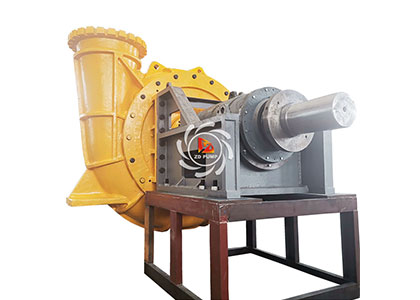

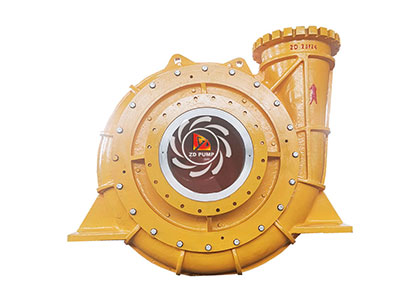

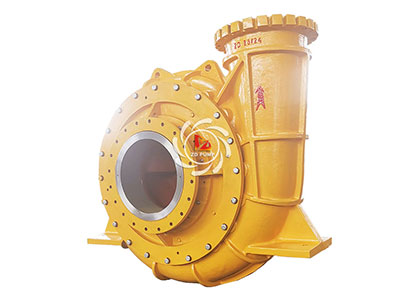

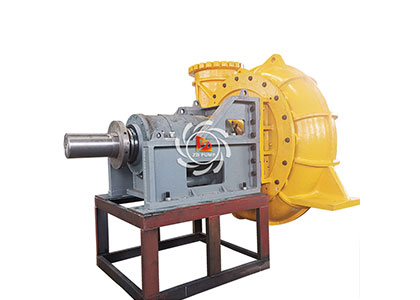

ZN series high efficiency new designed dredger pumps are particularly suitable for dredging, filling and other operations in rivers and lakes.
It fully meets the requirements of the dredger for mud pumps. They are composed of a pump head, reducer gear box, high elastic coupling, and marine transmission monitoring system.
ZN600 inlet diameter is 28 inches and the outlet is 24 inches.The inlet is bigger, which can increase the flow capacity and working efficiency and reduces cavitation.
| Pump model | ZN600 dredging pump |
| Inlet&Discharge size | 28X24 inch |
| Flow range | 5000-9500m3/h |
| Head range | 55-80m |
| Speed range | 280-420rpm |
| Power in max | 1800kw |
| Solid handling | 280mm |

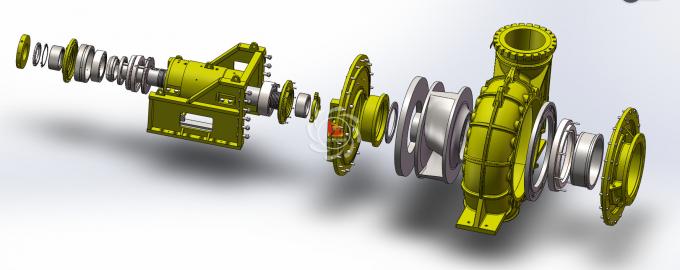

● Cantilevered, horizontal, centrifugal, one stage, single casing pump;
● The inlet diameter is 28 inches and the outlet is 24 inches. The inlet is bigger, which can increase the flow capacity;
● High head, large capacity, high efficiency, good NPSH performance;
● Long bearing life, the bearing assembly with large diameter shaft and short overhang;
● Wear-resistant wet parts, the wet parts are made of Ni hard and high chromium abrasion resistant alloys. (more than 27% Chrome alloy);
● The shaft seals can be gland seal or Lip seal;
● Bearing lubrication: thin oil lubrication, equipped with professional lubrication system, can improve the service life;
● The discharge branch can be positioned at interval of 45 degrees by request and oriented to any eight positions to suit installations and applications.
| Part Name | Material | Part Name | Material |
| Shaft | High tense steel | Pump body /Casing | 27% Chrome alloy |
| Bracket | HT200 | Pump Cover | Cast iron |
| Release Collar | CS1 | Front Plate Liner/Throatbush | 27% Chrome alloy |
| Rear Plate Liner | 27% Chrome alloy | Impeller | 27% Chrome alloy |
| Model | ZN dredging pump performance table | ||||||
| Capacity | Head | Speed | Efficiency | NPSH | Outlet/Inlet Diameter | Max Particles Size | |
| (m3/h) | H(m) | n(r/min) | η(%) | (m) | (mm) | (mm) | |
| ZN250 | 300-1600 | 35-80 | 490-750 | 70-74 | 4 | 250/350 | 144 |
| ZN300 | 1800-3000 | 40-65 | 425-550 | 74-78 | 4 | 300/450 | 241 |
| ZN350 | 2600-3000 | 40-65 | 400-550 | 74-78 | 4.5 | 350/450 | 205 |
| ZN400 | 2800-3200 | 20-40 | 400-550 | 74-78 | 4.5 | 400/450 | 200 |
| ZN450 | 3200-3850 | 40-67 | 350-500 | 76-80 | 4.5 | 450/600 | 254 |
| ZN500 | 4500-5500 | 40-65 | 350-450 | 78-80 | 4.8 | 500/650 | 250 |
| ZN600 | 5000-9500 | 55-80 | 280-420 | 84-85 | 6 | 600/660 | 280 |
| ZN700 | 8000-12000 | 60-85 | 280-380 | 83-85 | 6 | 700/760 | 300 |
| ZN800 | 10000-15000 | 60-70 | 260-360 | 79-80 | 6 | 800/850 | 320 |
| ZN900 | 12000-19000 | 50-75 | 280-330 | 85-87 | 6 | 900/960 | 340 |
| ZN1000 | 16000-25000 | 23-76 | 181-290 | 85-87 | 6 | 1000/1200 | 350 |
Zidong high efficiency horizontal dredge pump are designed for heavy duty applications such as mining, power sector, port, watercourse, lake dredging, land reclamation, slag discharge of the iron mine, tailing pond, ore dressing plant and other mines, absorption of the high-concentration tailing slag, waste residue, high-temperature iron slag and iron chip in metallurgy, steel and other industries watercourse dredging, lake development, wetland park construction, development along the beach, salt lake development as well as specialty applications, which are used for continuous pumping of high abrasive, high density sand and gravels.
| Mineral Processing | Power Generation | Aggregate |
| Ash Handling | Flue Gas Desulfurization | Thickener & Tailings |
| Mine Dewatering | Industrial Slurries | Dredge |
