| Size(discharge) | 20″(500 Mm) | Capacity | 1.6-3000 M 3/h |
|---|---|---|---|
| Head | 5-125m | Material | Cast Iron, Ss304,ss316 |
| Seed | 1450&2900 R / Min | Motor Power | 3-75KW |

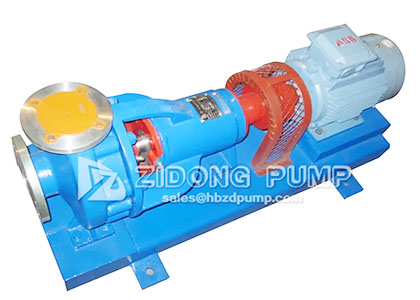

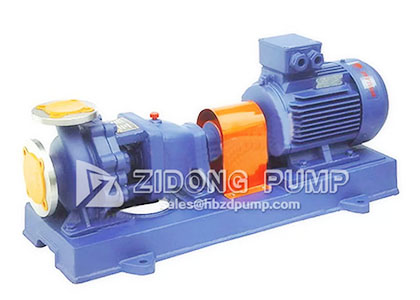

IHK open impeller chemical pump is based on IH standard type, the improvements of made in the sealing structure on the introduction of foreign advanced technology, the pump can deliver up to 35 % solid content less material; under normal circumstances 8000 hours continuous operation without leakage.
IHK open impeller Liquid Food Pump is based on IH, the improvements of made in the sealing structure on the introduction of foreign advanced technology, changing the physical properties of IH pump can only transport medium like water (no impurities and particles) of the defects , due to the advanced seal technology, science, unique,the pump can deliver up to 35 % solid content less material; under normal circumstances 8000 hours continuous operation without leakage, seal effect is 3 – 5 times than IH pump, and because the impeller is open structure, so the media will not plug the high solid content,the chemical industry of the pump is the ideal transport of various materials and advanced equipment.
We can be different according to different media materials produced in this pump, the current usually 321,304,316,316L, dual – phase steel, CD4MCu and other materials, the material can met the effect of corrosion resistant.

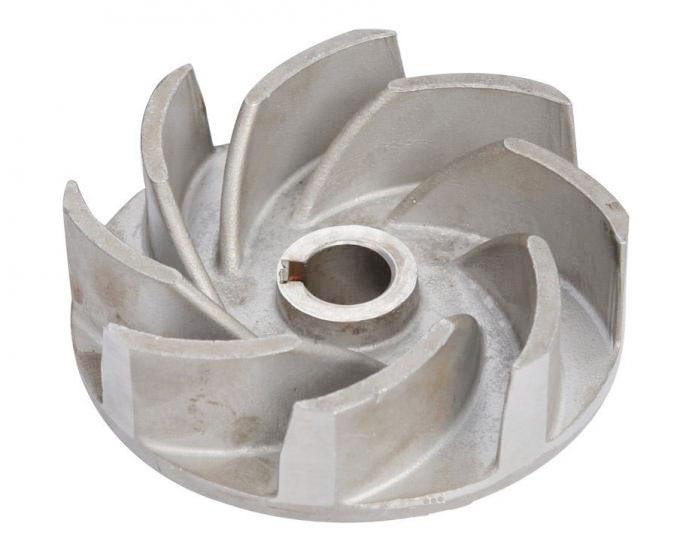

• Open impeller is not simply manufactured the closed to open, but add height and width suitable for the full structure.
• Heave-duty structure, can deliver medium with big solid and heave viscosity.
• Sealing structure was introduced from foreign advanced technology, especially our new unique single mechanical seal have 3times application results better than traditional double mechanical seal.
• All our precise parts are manufactured by Lost Wax Mold to guarantee the elegant both in surface and dimensions.
• Our shaft all used the NSK brand
• Under normal circumstances 8000 hours continuous operation without leakage
• Have strictly ISO quality controlling and quality inspection system.
The pump is widely used with the chemical, pharmaceutical, petroleum, metallurgy, electricity, electroplating, pickling, pesticide, paper and other industries in the liquid delivery, wastewater treatment and processing acids, etc. process.
This pump can be used in transporting harsh and strong erosive medium of any density such as vitriol, hydrochloric, organic dissolvent, corrosion medium and reducing agent etc. It is one of the latest erosion proof equipments in the world.
